When it comes to working with refrigerants like R22, understanding the relationship between pressure and temperature is crucial. This is where a pressure-temperature chart comes in handy. In this post, we'll delve into the importance of such charts, how to use them, and some key points to keep in mind when dealing with R22. Whether you're a seasoned HVAC technician or just starting out, this information will help you navigate the world of refrigeration with confidence.

1. Understanding the Basics of R22

R22, also known as chlorodifluoromethane, is a colorless, non-flammable, and non-toxic liquefied gas. It has been widely used as a refrigerant in air conditioning and refrigeration systems, but its production and use are being phased down due to environmental concerns. Understanding the properties of R22, including its pressure-temperature relationship, is essential for safe and efficient handling.

2. What is a Pressure-Temperature Chart?

A pressure-temperature chart is a graph that shows the relationship between the pressure and temperature of a refrigerant at different states, typically at saturation (where the liquid and vapor phases are in equilibrium). For R22, this chart is an indispensable tool for technicians to determine the state of the refrigerant within a system, whether it's in the liquid or vapor phase, and to identify potential issues such as overcharging or undercharging.

3. Reading the Chart for R22

To read a pressure-temperature chart for R22, you need to locate the intersection point of the system's pressure and temperature on the chart. This point tells you the saturation state (liquid or vapor) of the refrigerant at those conditions. For example, if the system's pressure gauge reads 72 psi, and the temperature is 55°F, you can find the corresponding point on the chart to determine if the R22 is in a liquid, vapor, or two-phase state.

4. Importance of Accuracy

Accuracy is key when using a pressure-temperature chart for R22. Small discrepancies in measured pressure or temperature can lead to incorrect conclusions about the state of the refrigerant, potentially causing system inefficiencies or even damage. It's crucial to ensure that all measurements are taken accurately and that the chart is specific to R22, as different refrigerants have unique pressure-temperature relationships.

5. Applications in HVAC Systems

In HVAC systems, understanding the pressure-temperature relationship of R22 is vital for troubleshooting and maintenance. Technicians use the chart to diagnose issues such as leaks, blockages, or improper charging, which can affect system performance and efficiency. By analyzing the pressure and temperature of the refrigerant, technicians can identify problems and apply the appropriate fixes to restore the system to its optimal operating condition.

6. Phase-Out of R22 and Alternatives

Due to its contribution to ozone depletion, the production and use of R22 are being phased out under the Montreal Protocol. As a result, technicians and system owners are looking for alternative refrigerants with similar properties to R22 but with less environmental impact. Understanding the pressure-temperature charts of these alternatives, such as R410A or R32, is becoming increasingly important as they become more widely adopted.

7. Safety Considerations

Working with refrigerants like R22 requires adherence to safety protocols to prevent accidents and environmental damage. Technicians should always refer to the safety data sheet (SDS) for R22, wear appropriate personal protective equipment (PPE), and follow proper handling and disposal procedures. The pressure-temperature chart is a tool that, when used correctly, can help minimize risks by ensuring the system operates within safe parameters.

8. Digital Tools and Resources

In addition to traditional printed charts, digital tools and apps are available that provide pressure-temperature data for R22 and other refrigerants. These resources can be more convenient and accessible, especially for technicians in the field. Some also offer additional features, such as calculation tools and diagnostic guides, making them valuable supplements to traditional charts and training.

9. Training and Certification

For those working with R22 and other refrigerants, obtaining the appropriate training and certification is essential. Programs like those offered by the Environmental Protection Agency (EPA) in the United States cover the handling of refrigerants, including the use of pressure-temperature charts, safety procedures, and environmental regulations. Staying updated with the latest practices and regulations is crucial in the ever-evolving field of refrigeration.

10. Conclusion

In conclusion, a pressure-temperature chart for R22 is a fundamental tool for anyone working with this refrigerant. Whether for installation, maintenance, or repair of HVAC systems, understanding the relationship between pressure and temperature is key to ensuring system efficiency, safety, and compliance with environmental regulations. As the industry moves towards more sustainable refrigerants, the principles learned from working with R22 will remain relevant, underscoring the importance of continued education and training in the field of refrigeration.

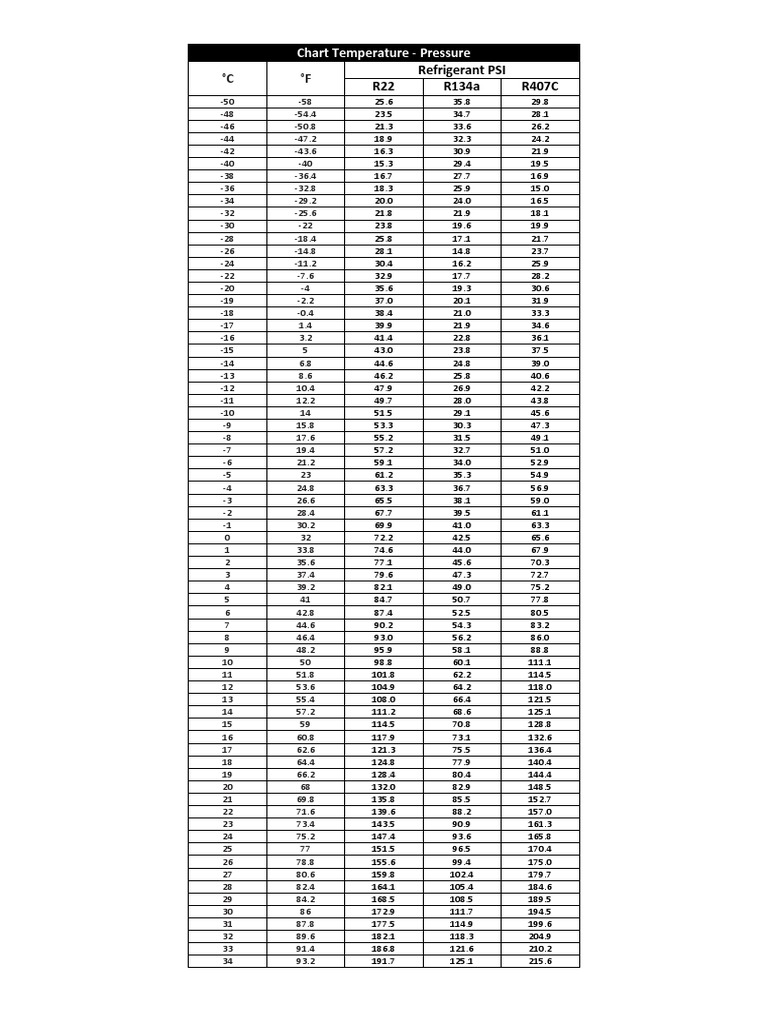

If you are looking for Refrigerant Temperature Pressure Chart – HVAC How To you've visit to the right page. We have 10 Images about Refrigerant Temperature Pressure Chart – HVAC How To like Chart Temperature - Pressure: Refrigerant PSI R22 R134a R407C | PDF, Refrigerant Temperature Pressure Chart – HVAC How To and also Refrigerant Temperature Pressure Chart – HVAC How To. Here it is:
